PROJECT CASE STUDY
Hay Park School Digital LED Sign Upgrade | School Digital Signage Project
Client
Hay Park School
Location
Auckland, New Zealand
Project Type
School Digital LED Sign Upgrade
Industry
Education / School Digital Signage
Completed By
WiPath Communications
The project involved upgrading the existing Digital LED Sign while reusing the original foundation and steel support structure. This approach significantly reduced installation costs and allowed the school to maximise its budget while benefiting from the latest LED display technology.
Modern School LED Sign Upgrade for Hay Park School
We have recently completed a major School LED Sign upgrade for Hay Park School, delivering a modern Digital LED Sign solution designed to enhance communication, visibility, and community engagement.
The school’s previous Digital LED Sign, originally installed by WiPath more than 10 years ago, served the school exceptionally well and became an important communication tool for students, parents, staff, and visitors. Over time, natural weather exposure and rapid advancements in Digital Signage technology made it increasingly difficult to display modern high-definition content and achieve the visual performance expected from today’s School Digital Signage systems.
To support the school’s future communication requirements, WiPath installed a new high-resolution 3.91mm Digital LED Sign featuring the latest School Digital Signage technology. The upgraded Outdoor LED Display provides improved image quality, enhanced reliability, cloud-based content management, and a modern platform capable of serving Hay Park School for many years to come.
This School LED Sign installation demonstrates how schools can modernise their communication systems by upgrading to the latest Digital LED Sign technology while making efficient use of existing infrastructure and budgets.

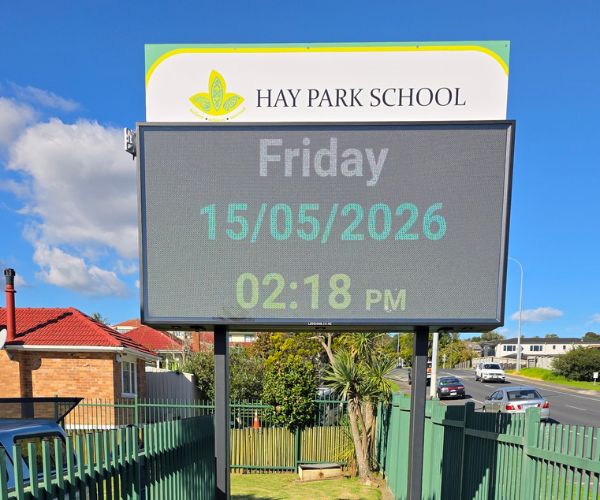

Digital LED Sign Specifications
- LED Display
- Single-Sided Outdoor Digital LED Sign
- Pixel Pitch: 3.91mm
- High-Resolution LED Display
- Landscape Orientation
- Cloud-Based Content Management System
- Remote Content Publishing and Management
- Display Dimensions
- LED Display Size: 2250mm Wide x 1250mm High
- Installation Height: Approximately 2500mm Above Ground
- Landscape Format for Enhanced Content Display
Static Signage Components
- Header Sign
- 500mm High x 2330mm Wide
- Custom School Name and Logo

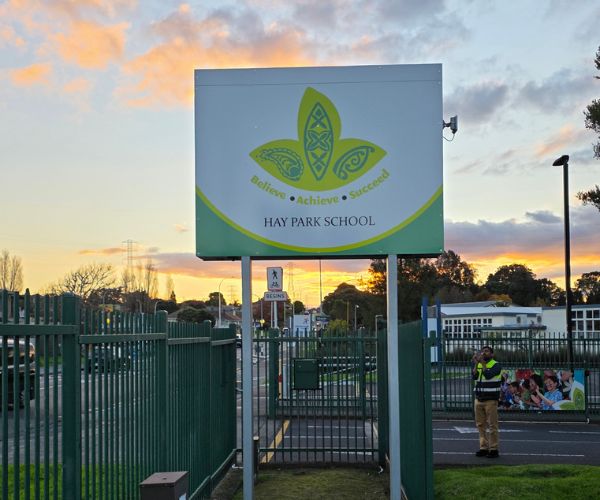

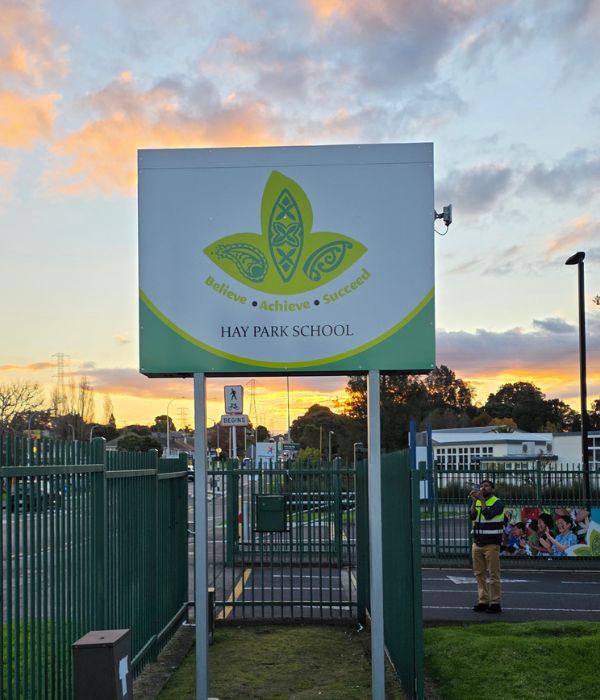

- Rear Static Panel
- 1250mm High x 2330mm Wide
- School Branding and Graphics
- Designed in collaboration with the school
Smart Upgrade Strategy
One of the key objectives of this project was to provide a cost-effective upgrade while maintaining high quality and long-term reliability.
Since the existing foundation and steel support posts remained in excellent condition, WiPath was able to reuse the original infrastructure rather than replacing it.
This approach delivered several benefits:
- Reduced project costs
- Faster project completion
- Minimal disruption to school operations
- Sustainable use of existing assets

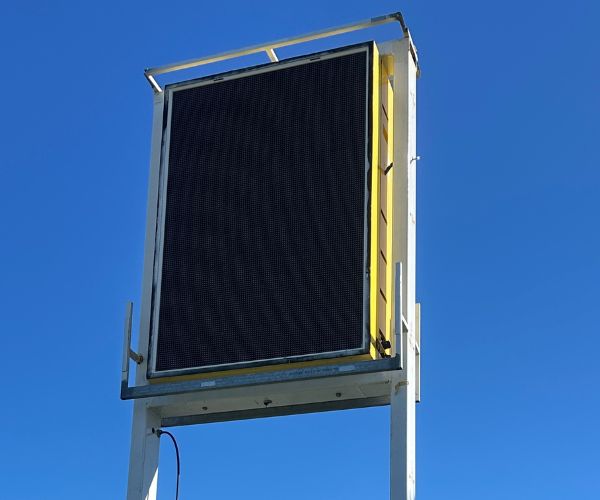

As the existing support structure had originally been designed for a portrait-oriented LED display, additional engineering and fabrication work was required.
WiPath custom-fabricated a new steel mounting structure that allowed the new landscape-oriented LED display to be securely installed on the existing steel posts.

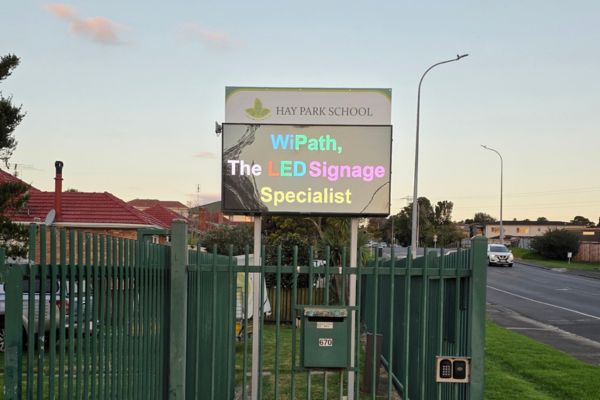

Manufacturing and Fabrication
The entire project was manufactured and assembled at WiPath’s Auckland facility. The fabrication process included:
- Manufacturing of the new LED display system
- Construction of custom mounting structures
- Static header sign production
- Rear branding panel fabrication
- System testing and quality assurance
The complete project was delivered from manufacturing through to installation within approximately 4–5 weeks.

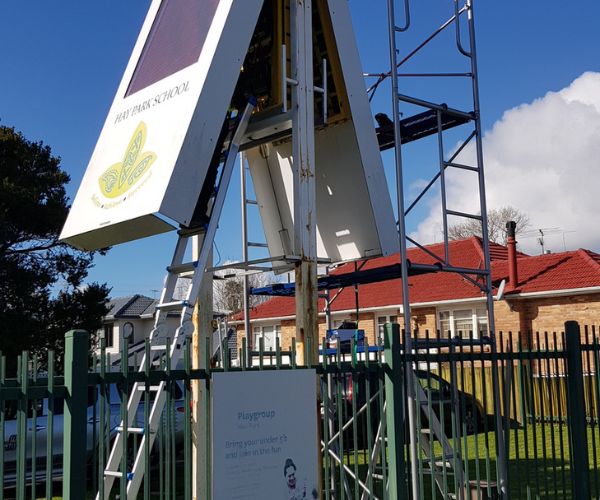

Installation Process
Because the existing foundations and support posts were retained, no additional ground works or underground service investigations were required.
Installation day was completed efficiently and safely using a Hiab crane.
- Installation Highlights
- Removal of the existing LED display
- Lifting and positioning of the new steel mounting structure
- Installation onto existing steel support posts
- Lifting and mounting of the new Digital LED Sign
- Electrical and network commissioning
- Testing and final handover
The entire installation process was completed within approximately 4–5 hours, minimising disruption to the school’s daily activities.
Network and Cloud Connectivity
The sign location was outside the coverage area of the school’s existing WiFi network.
To provide reliable communication between the school and the LED display, WiPath installed a Point-to-Point Wireless Network solution.
- Point-to-Point Wireless Bridge
- Stable Long-Range Connectivity
- Secure Communications
- Reliable Content Uploading
The LED display was then integrated into WiPath’s cloud-based Digital Signage platform, allowing remote management and monitoring.

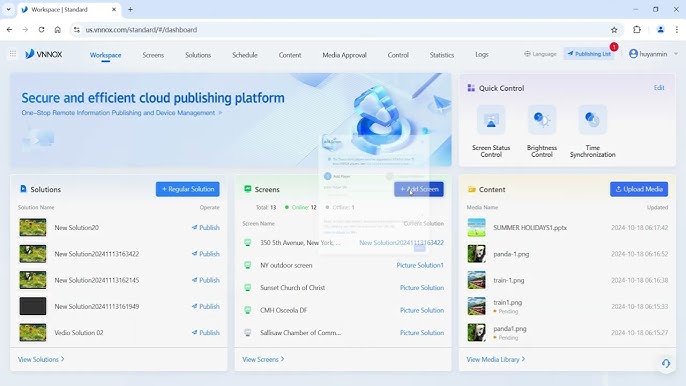

Cloud-Based School Digital Signage
The new School LED Sign is fully cloud managed, providing complete flexibility for school staff.
Key features include:
- Remote content management
- Real-time content updates
- Event scheduling
- School announcements
- Emergency messaging
- Multiple user accounts
- Access from any internet-connected device
The platform allows multiple authorised users to manage and publish content, making it easy for different departments to contribute information and updates.
Electrical Infrastructure
As the previous LED sign installation already included a dedicated electrical supply, no additional electrical infrastructure was required.
The existing power connection was retained, helping reduce project costs and streamline the installation process.

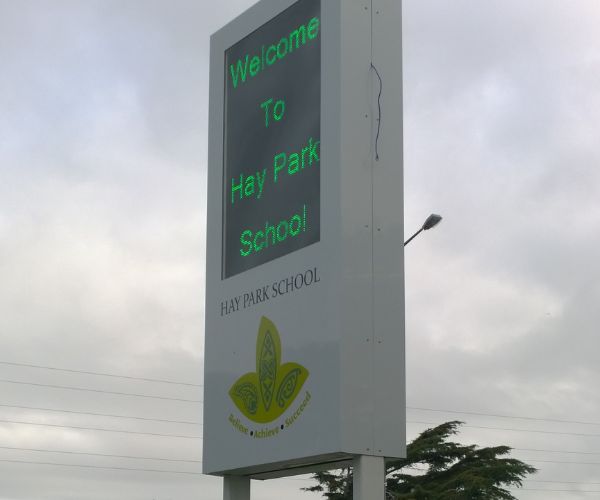

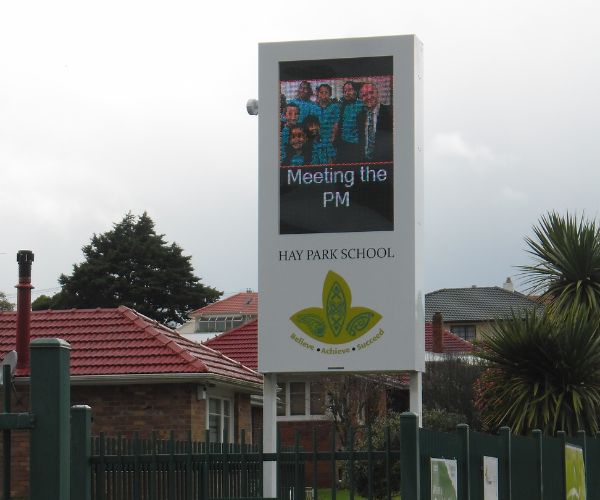

Before

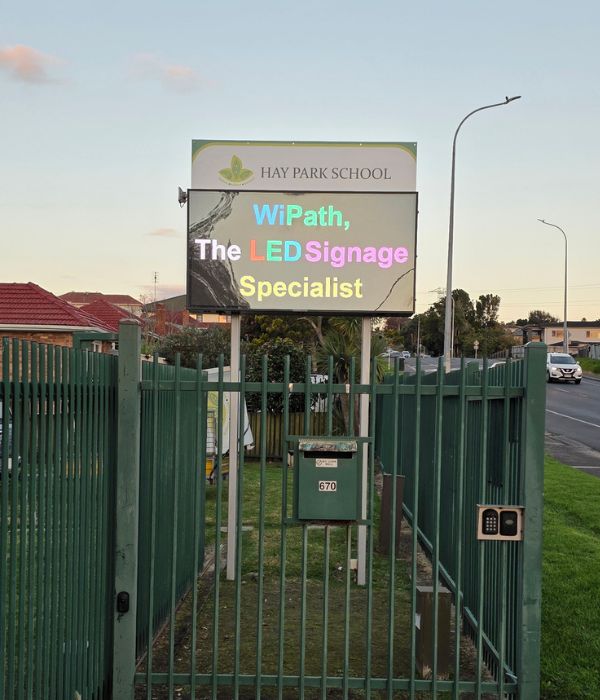

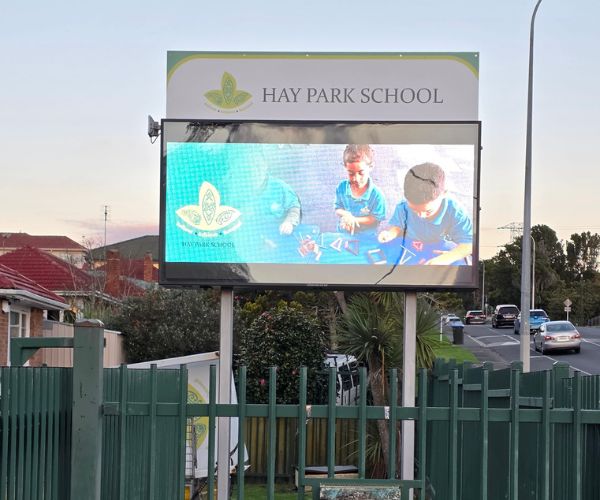

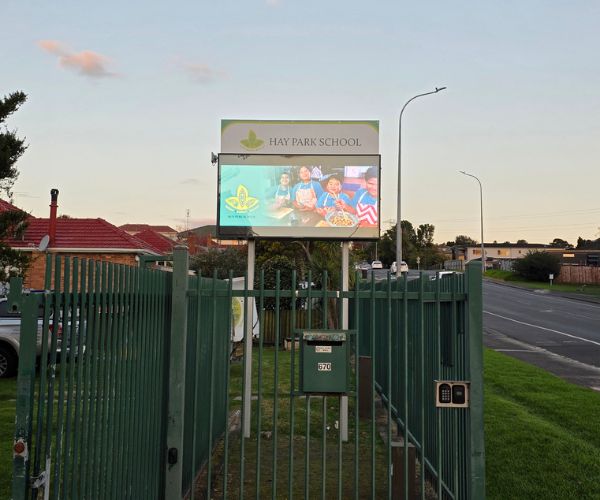

After
Benefits for Hay Park School
The upgraded Digital LED Sign provides significant advantages for the school community.
