PROJECT CASE STUDY
Mt Smart Stadium Rugby Digital Scoreboard
Custom Rugby Scoreboard Software
Client
Sir Keith Park Specialist School
Location
Auckland, New Zealand
Project Type
School LED Sign Installation
Display Quantity
2 Digital LED Signs
Display Configuration
V-Shaped
Display Size
2250mm W × 1250mm H each
Display Type
Outdoor RGB Full Colour LED
Display Area
2.81m² per face
Structure
Custom galvanised & powder-coated steel
Custom Digital Rugby Scoreboard for Mt Smart Stadium
WiPath Communications designed and installed a custom Digital Rugby Scoreboard at Mt Smart Stadium, Auckland, providing a high-resolution LED scoring and timing system for the rugby field.
The LED Rugby Scoreboard is regularly used for rugby training and practice sessions, including training activities associated with the New Zealand Warriors.
Rather than supplying a standard off-the-shelf scoreboard, WiPath developed a custom Rugby Scoreboard Software solution specifically around the requirements of the rugby field. The system allows the operator to update scores, team names, match timing and additional game time in real time through an easy-to-use interface.
The project combines a 3.91mm outdoor LED display, custom scoreboard software, flexible control options and an economical boundary-wall mounting system to create a practical and professional Sports LED Scoreboard.
| Specification | Details |
|---|---|
|
Location |
Mt Smart Stadium, Auckland |
|
Application |
Rugby Training & Practice |
|
Project Type |
Digital Rugby Scoreboard |
|
Display Type |
Outdoor Full-Colour LED |
|
Pixel Pitch |
3.91mm |
|
Display Size |
2250mm W × 1250mm H |
|
Control System |
Custom Rugby Scoreboard Software |
|
Main Control |
Web Browser |
|
Additional Input |
HDMI |
|
Connectivity |
Cloud / Local |
|
Installation |
Existing Rugby Field Boundary Wall |
|
Timer Modes |
Rugby Match Scoreboard + Large Practice Timer |
3.91mm LED Rugby Scoreboard
The scoreboard uses a 3.91mm pixel pitch full-colour LED display measuring 2250mm wide × 1250mm high.
The large-format LED screen provides a clear digital display for rugby scores, team names and match timing.

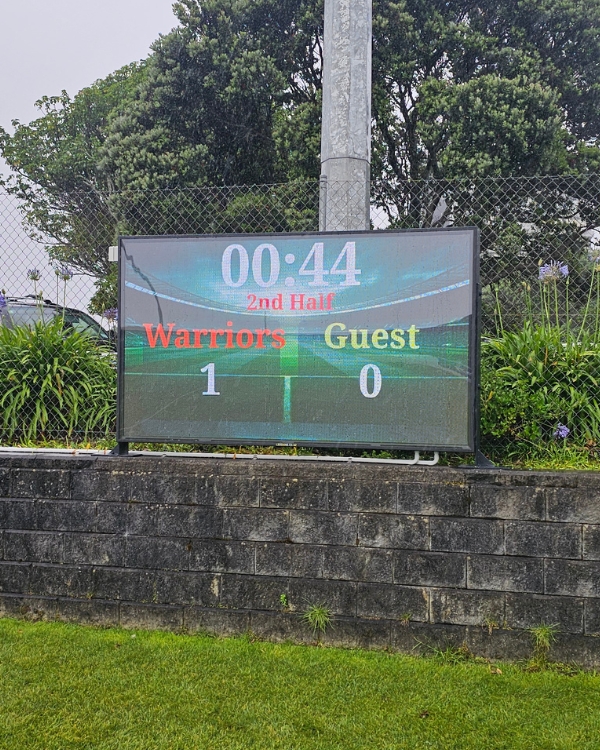

The scoreboard interface shown in the project installation is designed to clearly separate the key information:
- Match clock
- Half indicator
- Home team
- Away team
- Team scores
- Large, easy-to-read graphics
The full-colour LED technology also provides flexibility to display different colours, graphics and scoreboard layouts according to the requirements of the rugby field.

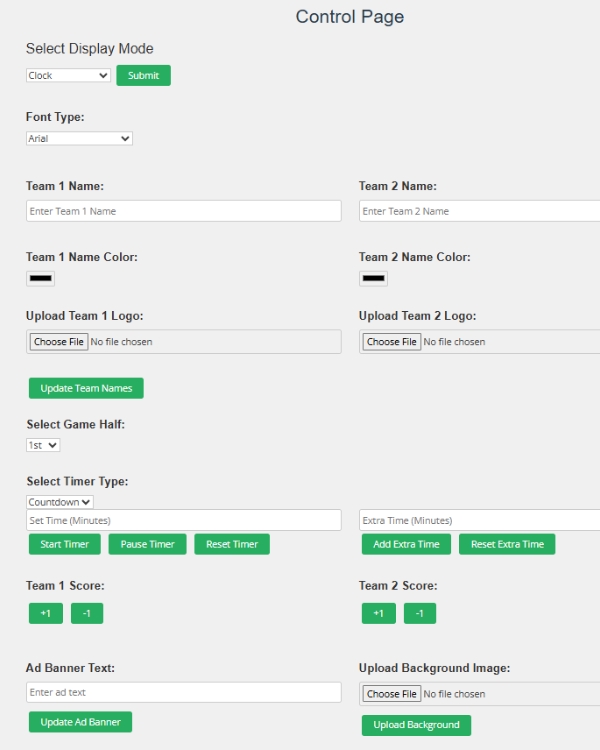

Custom Rugby Scoreboard Software
One of the most important features of this project is the custom-designed Rugby Scoreboard Software developed by WiPath.
The software was created specifically for rugby applications rather than relying on a generic scoreboard controller.
The system gives the operator flexibility to update the scoreboard in real time during a training session or match.
- The software allows operators to:
- Update the score instantly
- Change home and away team names
- Control the match clock
- Set first-half timing
- Set second-half timing
- Add additional minutes
- Manage rugby game timing requirements
- Update scoreboard information in real time
- Switch between different scoreboard views
This provides the stadium with a flexible Digital Rugby Scoreboard that can be configured for different training sessions and rugby game requirements.
Custom Rugby Match Timer
The match timer was specifically developed as part of the Rugby Scoreboard Software.
The operator can configure the clock according to the requirements of the rugby session, including the first and second halves.
The system also provides the ability to add extra minutes when required, allowing the scoreboard to accommodate different rugby game and training scenarios.
This gives coaches, officials and operators greater flexibility compared with a fixed-function electronic scoreboard.
This gives the school a robust Outdoor Digital LED Sign designed for long-term use.
Extra-Large Practice Timer
A particularly useful feature developed by WiPath is the additional practice timer mode.
The software allows the operator to switch between two different display views:
1. Rugby Match Scoreboard
- The main scoreboard view displays:
- Match clock
- Half information
- Team names
- Team scores
- Rugby scoreboard graphics

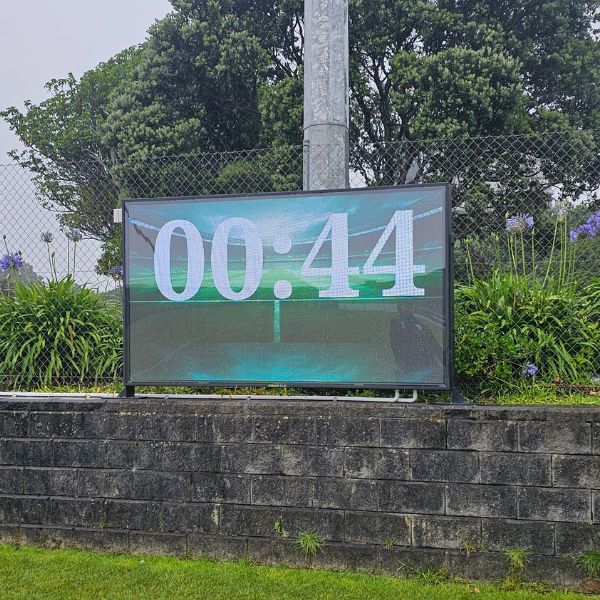

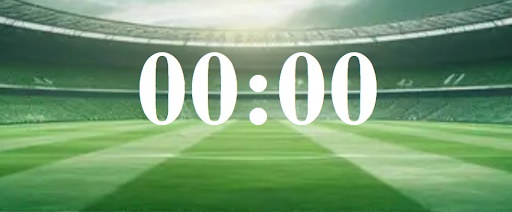

2. Extra-Large Practice Timer
The second view transforms the LED display into a large, bold practice timer.
The timer uses an extra-large display format designed for visibility across the rugby training ground. The large numbers are intended to remain clearly visible from approximately 200 metres, making it useful for coaches and players during training sessions.
This dual-purpose design means the same LED Sports Scoreboard can be used for both rugby match-style scoring and everyday training activities.
Cloud and Local Scoreboard Control
The scoreboard system was designed to provide flexible control options.
A dedicated controller allows the display input to be switched between different sources, including:
- Cloud-based scoreboard control
- Local computer
- Laptop
- HDMI input
This provides flexibility for stadium staff and operators.
The scoreboard can be controlled through the custom software using a web browser, while HDMI connectivity provides an additional local input option when required.

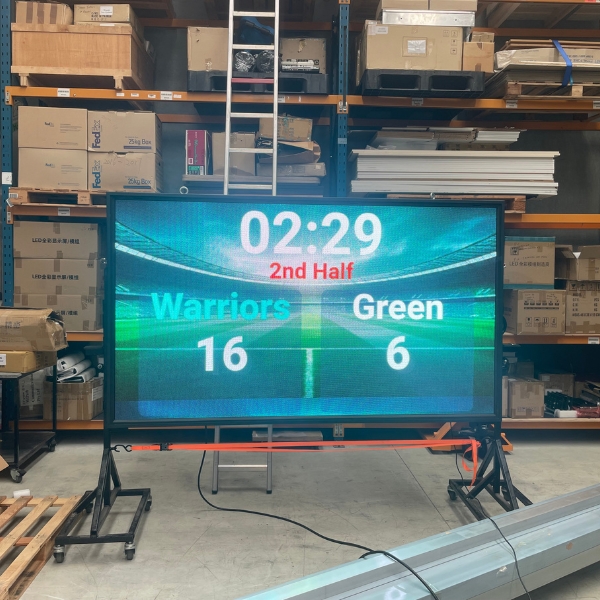

Economical Rugby Scoreboard Installation
The Digital Scoreboard was installed directly onto the existing boundary wall of the rugby field.
Rather than constructing a separate ground foundation, WiPath developed a compact and economical custom steel mounting system.
The LED scoreboard is supported by two vertical flat steel mounting plates, positioned on either side of the display.
Each mounting plate is welded to a horizontal base flange, creating a rigid support assembly. The base flanges are then securely fixed to the existing concrete boundary wall using DynaBolts.
The LED display is secured to the rear mounting points of the steel support structure.
This approach provided a strong and practical mounting solution while keeping the installation compact and economical.
Digital Scoreboard Designed for Rugby Training
The scoreboard is dedicated to the rugby field and is used regularly for training and practice.
The combination of the Digital Rugby Scoreboard and large practice timer provides coaches and players with a flexible training tool.
- The system can be used for:
- Rugby training
- Practice matches
- Match simulations
- Game timing
- Score tracking
- Training drills
- Team activities
- Rugby development programmes
The ability to switch between the full rugby scoreboard and extra-large practice timer makes the display particularly useful for everyday training.
Why Choose a Custom Digital Rugby Scoreboard?
A custom Rugby LED Scoreboard can be designed around the exact requirements of a sports facility.
With custom software, the scoreboard can provide more flexibility than a conventional fixed-function scoreboard.
WiPath’s custom solution allows operators to manage:
Score → Team Names → Match Clock → Half → Extra Time → Graphics → Practice Timer
The software and display can therefore be developed around the way the sports facility actually operates.
WiPath Custom Sports Scoreboard Solutions
WiPath specialises in Digital Scoreboards, Rugby Scoreboards, LED Sports Scoreboards, custom LED displays and digital signage solutions throughout New Zealand.
For the Mt Smart Stadium project, WiPath provided a complete customised system including:
- 3.91mm LED Scoreboard
- Custom Rugby Scoreboard Software
- Real-time score control
- Custom rugby match timer
- First and second-half timing
- Additional time functionality
- Team name control
- Extra-large practice timer
- Cloud control
- HDMI connectivity for live streaming
The ability to develop both the LED hardware and software allows WiPath to create custom sports scoreboard solutions for rugby clubs, schools, training facilities, stadiums and other sporting organisations.
Looking for a Rugby Scoreboard?
If your sports club, school, stadium or training facility needs a Rugby Scoreboard, Digital Sports Scoreboard, LED Scoreboard, or a custom scoreboard with real-time software control, WiPath can design a solution around your requirements.
From the LED display and mounting structure to the custom Rugby Scoreboard Software, WiPath can provide a complete solution for modern sports facilities.
Contact WiPath to discuss your next Digital Scoreboard project.
