PROJECT CASE STUDY
Sir Keith Park Specialist School V-Shaped LED Sign Installation
Client
Sir Keith Park Specialist School
Location
Auckland, New Zealand
Project Type
School LED Sign Installation
Display Quantity
2 Digital LED Signs
Display Configuration
V-Shaped
Display Size
2250mm W × 1250mm H each
Display Type
Outdoor RGB Full Colour LED
Display Area
2.81m² per face
Structure
Custom galvanised & powder-coated steel
Unique V-Shaped Digital LED Sign for Sir Keith Park Specialist School
WiPath Communications recently completed a unique School LED Sign installation for Sir Keith Park Specialist School, featuring two high-resolution outdoor Digital LED Signs mounted in a custom V-shaped structure.
Each LED display measures 2250mm wide × 1250mm high and uses 3.91mm pixel pitch RGB technology, providing clear, vibrant and highly visible digital content for students, parents, staff and the wider school community.
The two Outdoor LED Displays are positioned in a V-shaped arrangement and supported by a purpose-built galvanised and powder-coated steel structure. This design provides excellent visibility from different directions while creating a distinctive entrance feature for the school.
The project also included a new ground-screw foundation system, removal of the school’s existing sign, anti-vandal protection, cloud-based content management and staff training.
| Specification | Details |
|---|---|
|
Client |
Sir Keith Park Specialist School |
|
Project Type |
School LED Sign Installation |
|
Location |
Auckland, New Zealand |
|
Display Quantity |
2 Digital LED Signs |
|
Display Configuration |
V-Shaped |
|
Display Size |
2250mm W × 1250mm H each |
|
Pixel Pitch |
3.91mm |
|
Display Type |
Outdoor RGB Full Colour LED |
|
Display Area |
2.81m² per face |
|
Structure |
Custom galvanised & powder-coated steel |
|
Foundation |
3 ground screws |
|
Protection |
4.5mm polycarbonate anti-vandal cover |
|
Control |
Cloud-based content management |
|
Connectivity |
Secure Point-to-Point Wi-Fi / existing data connection |
|
Design Life |
100,000 hours continuous operation |
|
Support |
Warranty and optional ongoing maintenance |

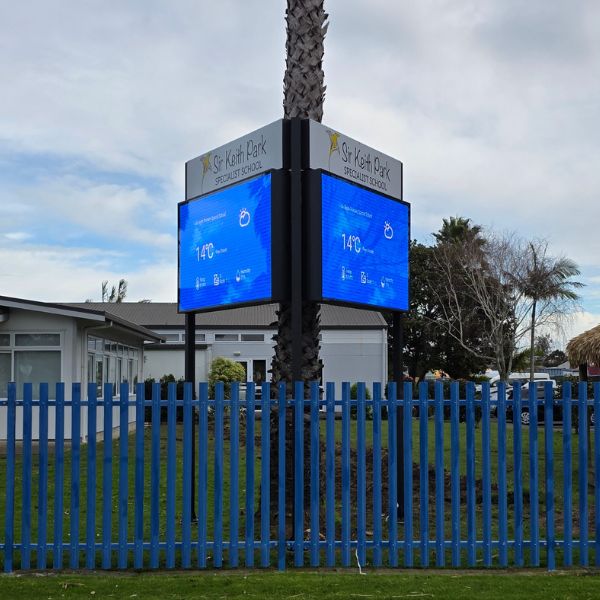

A Unique V-Shaped School LED Sign

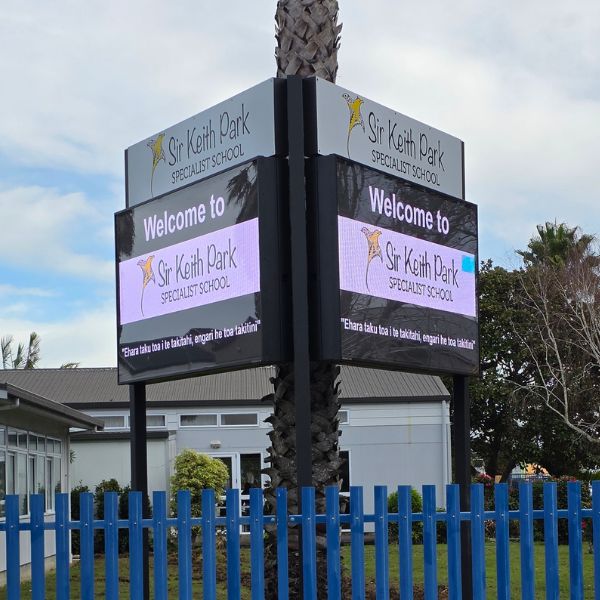

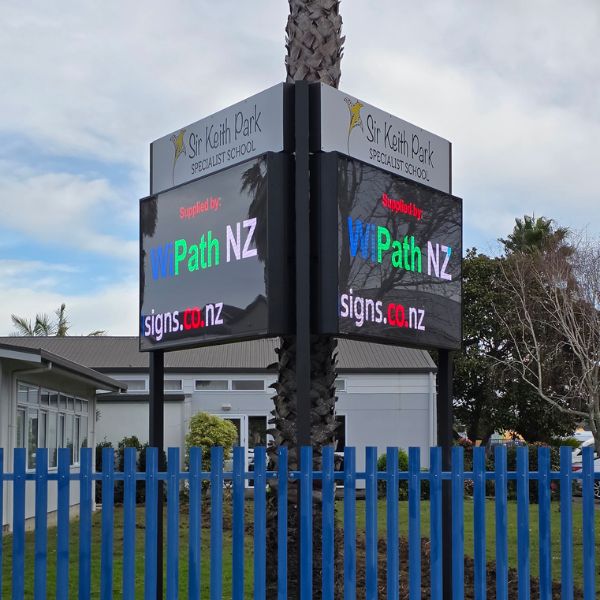

The key feature of this project is the V-shaped LED sign structure.
Instead of installing a conventional single-face Digital LED Sign, WiPath designed a structure supporting two individual LED displays positioned at an angle to provide visibility from different approaches to the school.
Each face measures 2250mm wide × 1250mm high, giving the school two large, high-resolution digital communication displays.
The structure was designed with three steel mounting posts, providing a strong and stable foundation for both LED signs. The engineering layout incorporates the V-shaped configuration shown in the project design, with the two sign faces positioned to provide broad viewing coverage.
Both signs feature 3.91mm pixel pitch RGB full-colour LED technology.
The high-resolution School LED Sign provides clear text, graphics, photographs and promotional content while maintaining strong visibility in an outdoor environment.
- Each display features:
- 2250mm × 1250mm display size
- 3.91mm pixel pitch
- RGB full-colour LED technology
- 2.81m² display area per face
- Aluminium weatherproof enclosure
- 4.5mm polycarbonate anti-vandal protection
- Rear access for maintenance
- Integrated temperature sensor
- Built-in calendar and clock
The Digital LED Sign can display text, JPEG, TIFF and PNG images, animated GIFs and AVI video clips, subject to applicable council requirements.

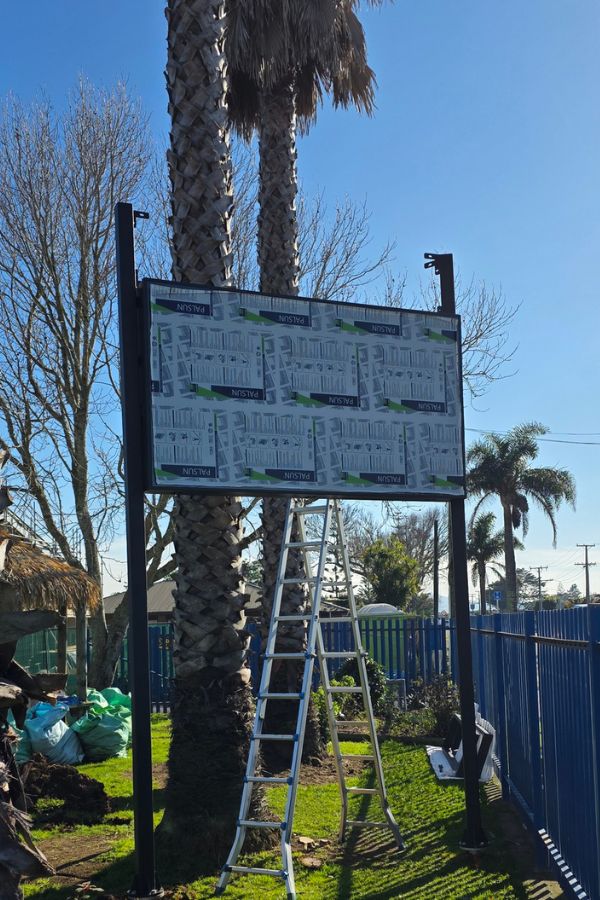

Custom Ground-Screw Foundation and V-Shaped Structure
As part of the installation, WiPath carried out sub-surface detection before construction to identify underground services and help ensure the new foundation could be installed safely.

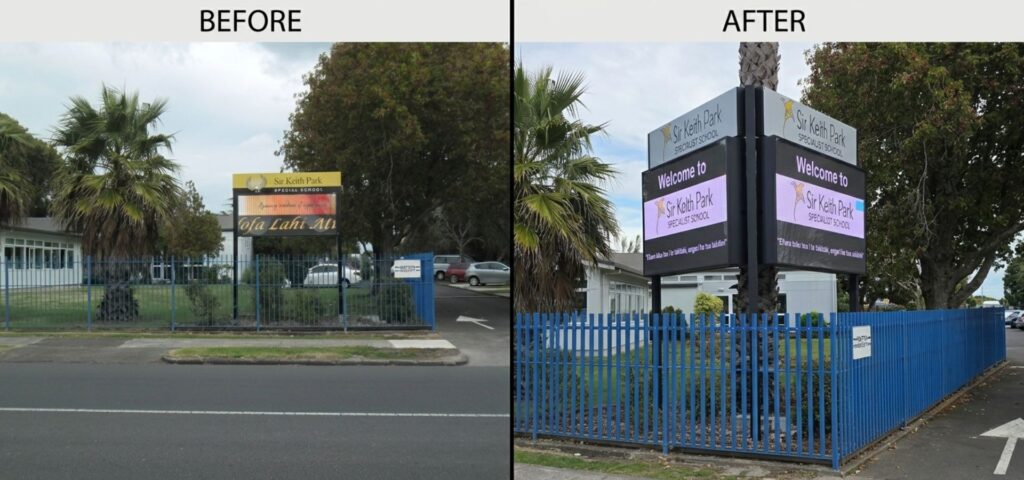

The existing school sign was removed and disposed of before the new structure was installed.

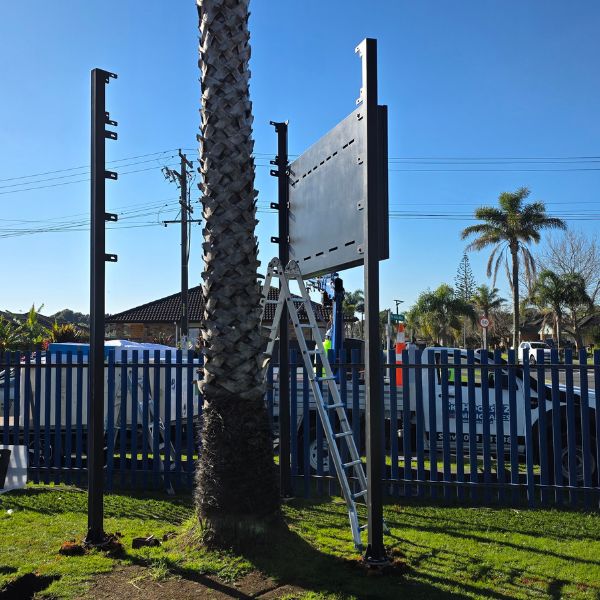

Three ground screws were installed for the new V-shaped structure:
SGC 89mm × 2000mm × 18mm Adapter Screws
The steel structure was fabricated specifically for this project and finished with hot-dip galvanising and powder coating to provide a durable exterior finish.
The uploaded project design shows the three-post arrangement and the V-shaped geometry used for the two LED displays.

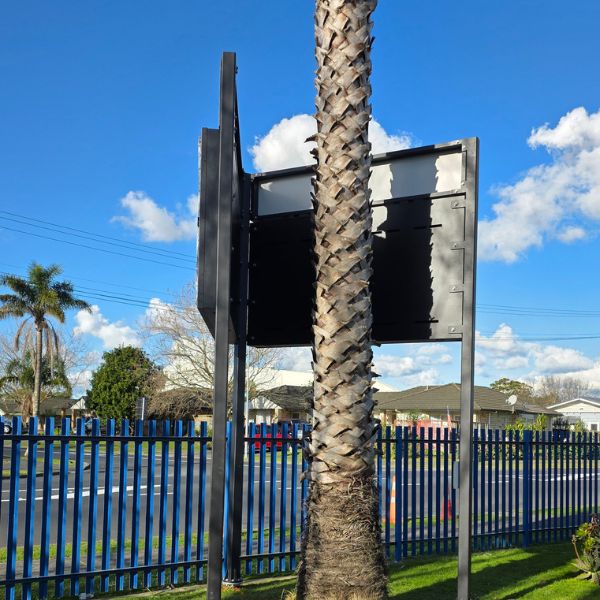

Anti-Vandal and Weather Protection
Because the School LED Sign is installed outdoors, protection against weather and physical impact was an important part of the design.
Each LED display is enclosed in a weatherproof aluminium frame with a 4.5mm polycarbonate front cover.
- The protection provides:
- Weather-resistant enclosure
- Anti-vandal polycarbonate protection
- Rear access for maintenance
- Durable aluminium construction
- Black or customised frame finish
This gives the school a robust Outdoor Digital LED Sign designed for long-term use.
Cloud-Based School Digital Signage
The new Digital LED Signs are connected to WiPath’s cloud-based content management platform.
Authorised school staff can remotely manage and publish content without needing to access the physical sign.
- The system can be used for:
- School announcements
- Student information
- Parent communications
- School events
- Welcome messages
- Community information
- Important notices
- Celebrations and achievements
- Photos and graphics
Secure point-to-point Wi-Fi can be used for communication with the signs, while direct data network connectivity can also be supported where required.
WiPath also provided software installation and an initial training session to help school staff understand how to create and publish messages.
Designed for Long-Term School Use
The School LED Sign system has a design life of approximately 100,000 hours of continuous operation, with parts availability planned for 10 years.
- The project also included:
- Commissioning and testing
- Cloud platform configuration
- Staff training
- 2-year warranty on electronics
- 5-year warranty on structure
- 10-year parts availability guarantee
- Optional ongoing maintenance
This gives the school a long-term Digital Signage platform that can continue to support communication for years to come.
Why Schools Choose Digital LED Signs
A modern School LED Sign gives schools a flexible way to communicate with students, parents and the wider community.
Unlike traditional static signs, digital signage allows authorised staff to update messages whenever required.
- Schools can use an Outdoor LED Display to:
- Welcome students and visitors
- Promote school events
- Share important announcements
- Communicate with parents
- Celebrate student achievements
- Display community messages
- Promote school programmes
- Share reminders and notices
For schools looking to modernise their entrance signage, a Digital LED Sign provides a highly visible and flexible communication platform.
WiPath School LED Sign Experience
WiPath has extensive experience designing and installing School LED Signs and Digital LED Displays throughout New Zealand.
Since 2010, WiPath has installed more than 70 LED signs, with approximately 80% supplied to schools, giving us extensive experience with school environments and digital communication requirements.
- Our services include:
- LED Sign Design
- Engineering
- Steel Structure Fabrication
- Ground-Screw Foundations
- LED Display Installation
- Cloud-Based Digital Signage
- Commissioning
- Staff Training
- Maintenance and Support
From a standard School LED Sign to a custom V-shaped Digital LED Sign, WiPath can design a solution around the school’s site, visibility requirements and communication needs.
