PROJECT CASE STUDY
Port of Auckland Digital LED Sign Installation | Commercial Digital Signage Project
Client
Port of Auckland
Location
Fergusson Terminal, Auckland, NZ
Project Type
Commercial Digital LED Sign Installation
Industry
Transport & Logistics
Completed By
WiPath Communications
This project involved the design, manufacture, installation, commissioning, and handover of a custom-built Outdoor Digital LED Sign mounted on a purpose-designed mono-pole steel structure. The completed display provides a powerful Digital Signage solution for communicating with thousands of visitors, contractors, and vehicle operators accessing the port facility.
Custom Digital LED Sign for Port of Auckland

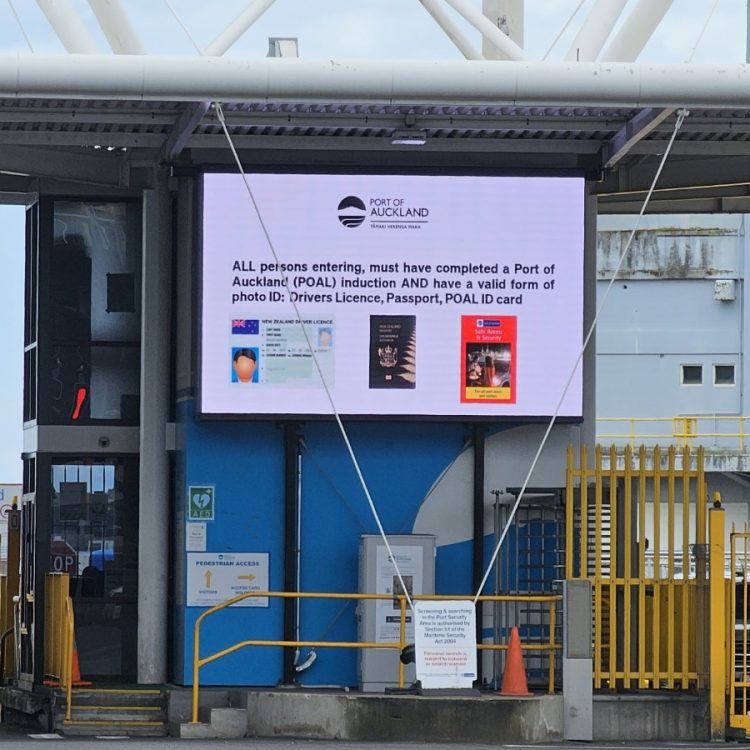

WiPath Communications recently completed another successful Digital LED Sign installation for Port of Auckland, marking the fourth LED display project delivered for one of New Zealand’s busiest transport and logistics facilities.

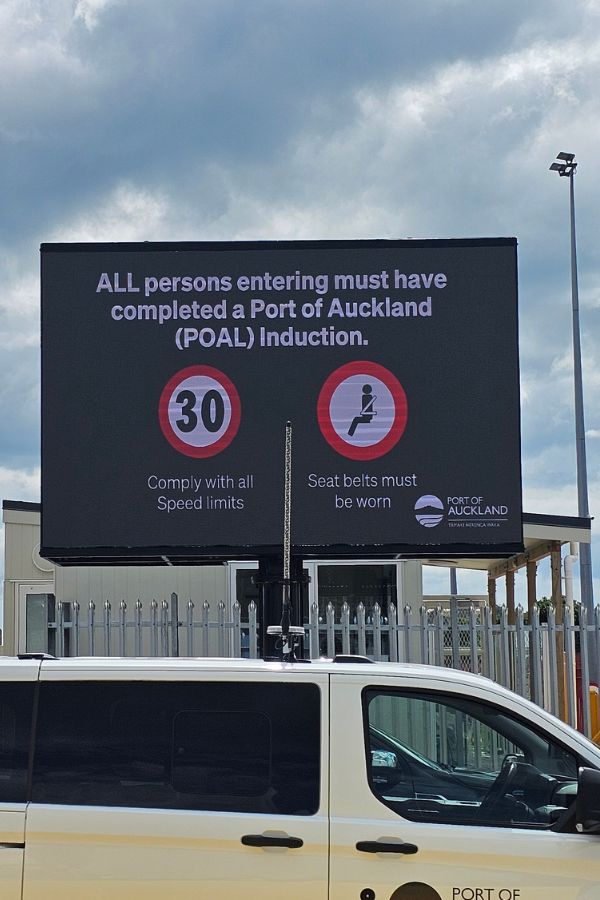

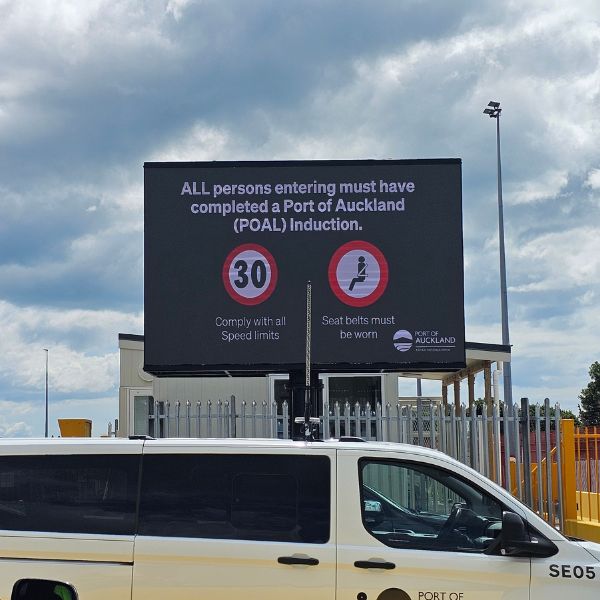

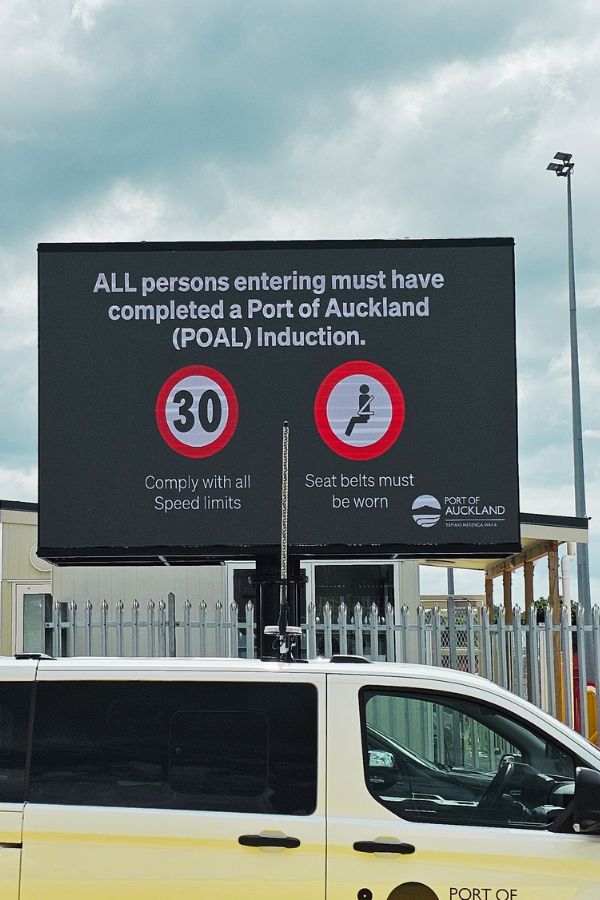

This large-scale Commercial Digital Signage project was designed to improve communication with visitors, contractors, transport operators, and site personnel entering the Fergusson Terminal Gate House. The new Outdoor LED Display provides a highly visible platform for delivering important operational information, safety notices, traffic management instructions, site announcements, and event communications.
As with all Port of Auckland infrastructure projects, the installation required strict compliance with health and safety requirements, engineering approvals, and verified structural design documentation. The result is a modern, high-performance Digital LED Sign built to withstand demanding coastal conditions while providing reliable 24/7 operation.
Digital LED Sign Specifications
- LED Display
- Single-Sided Outdoor Digital LED Sign
- Pixel Pitch: 3.91mm
- Full Colour RGB Display
- High-Brightness Outdoor Technology
- Automatic Brightness Adjustment
- Weatherproof and Corrosion-Resistant Construction
- Display Size
- Width: 4.0 Metres
- Height: 2.5 Metres
- Total Display Area: 10m²
- Physical Resolution
- Resolution: 1024 x 640 Pixels
- High-Definition Outdoor Display
- Optimised for Long-Distance Viewing
LED Panel Configuration
The Digital LED Sign consists of 24 individual LED panels:
- Panel Size: 500mm x 750mm
- Configuration: 8 Panels Wide x 3 Panels High
- Total Display Dimensions: 4000mm x 2500mm
The 3.91mm pixel pitch provides exceptional image clarity and allows the display of high-definition content, graphics, text, safety information, and operational messaging.

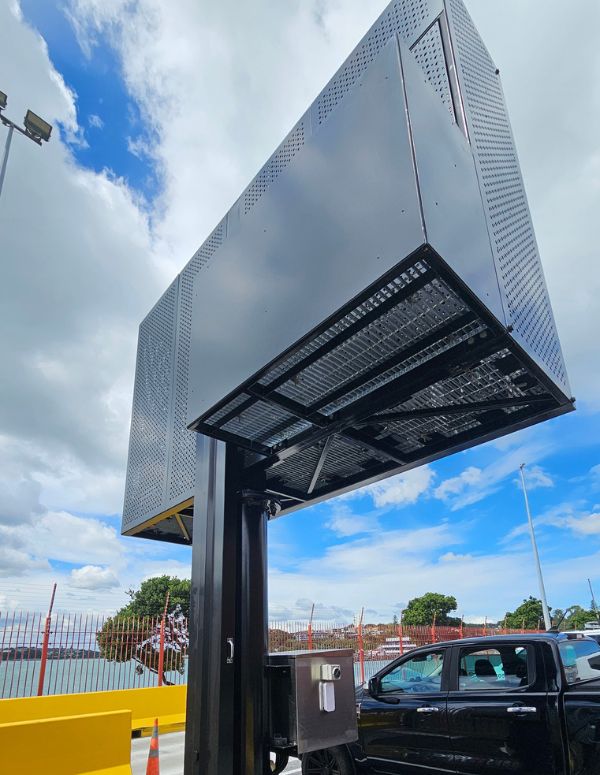

Purpose-Built Steel Structure
A key component of this project was the fabrication of a custom-engineered steel support structure.
The structure was designed and manufactured at WiPath’s Auckland facility and required approximately 7–10 days of fabrication, assembly, LED installation, and testing before delivery to site.
- Structural Features
- Custom-fabricated mono-pole steel structure
- Single central support column
- Integrated full-height maintenance cage
- Secure access for servicing and maintenance
- Internal cable management system
- Lockable enclosure for power and control equipment
- Designed for long-term outdoor operation
The maintenance cage provides safe and secure access for servicing while protecting critical system components from unauthorised access.
Designed for New Zealand Coastal Conditions
Port environments present unique challenges due to exposure to salt air, wind, moisture, and continuous operation requirements.
To ensure long-term performance, the Digital LED Sign was designed using corrosion-resistant materials and outdoor-rated components suitable for New Zealand coastal conditions.
Features include:
- Weatherproof aluminium cabinets
- Corrosion-resistant construction
- Outdoor-rated electronics
- High-brightness LED technology
- Automatic brightness control
- Long service life
The display is designed for approximately 100,000 hours of continuous operation.

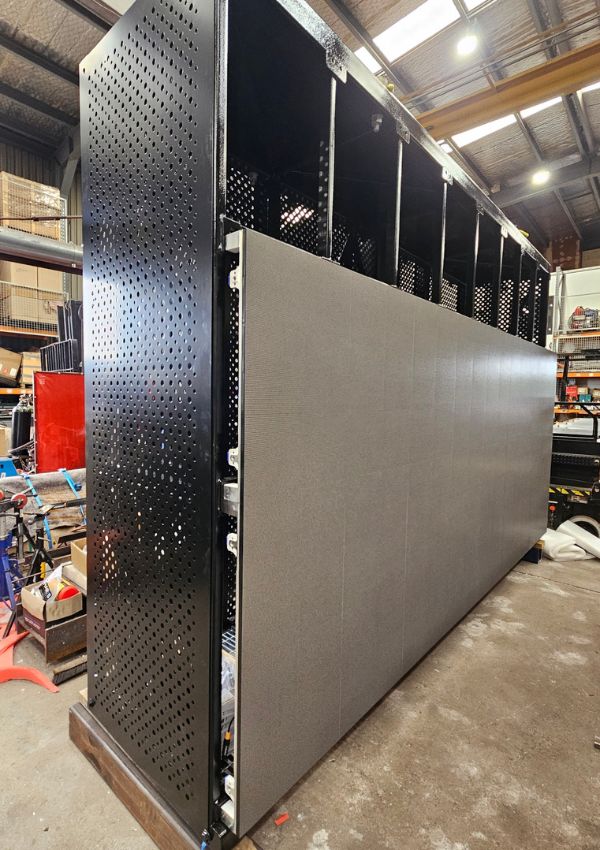

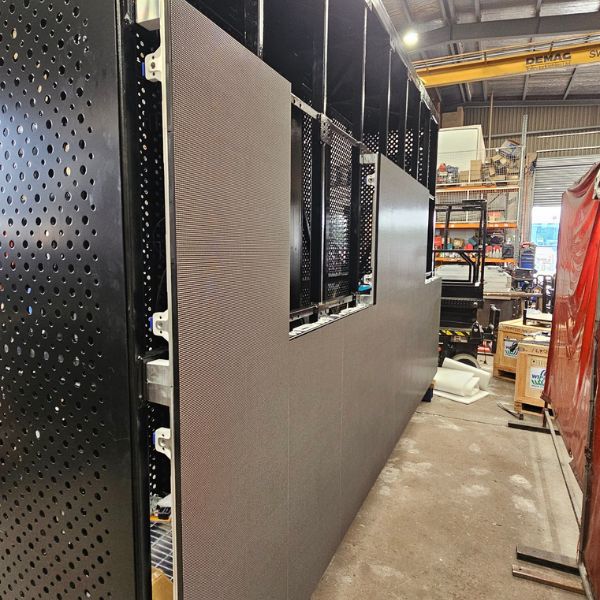

Manufacturing and Assembly
All fabrication and assembly work was completed at WiPath’s Auckland workshop.
- The project included
- Steel structure fabrication
- LED display assembly
- Integration of maintenance access systems
- Cable management installation
- Control system integration
- Cloud platform configuration
- Full system testing and quality assurance

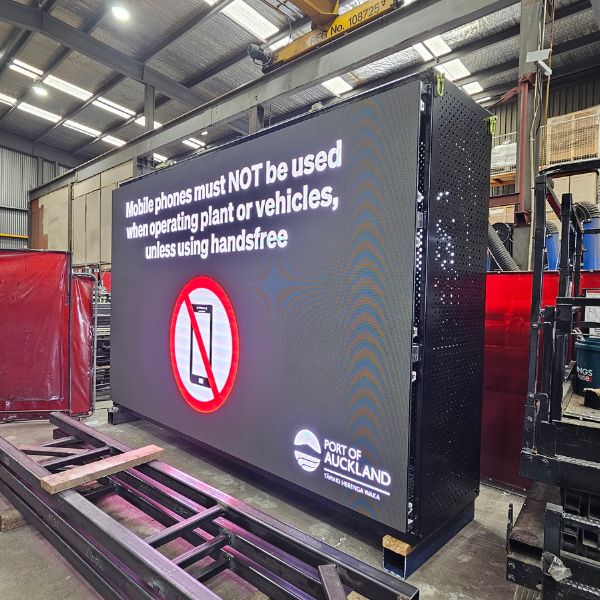

Prior to delivery, the complete Digital LED Sign was assembled and operated under load conditions to verify performance and reliability.
Cloud-Based Digital Signage Platform
The display is connected to WiPath’s cloud-based Digital Signage platform, allowing Port of Auckland staff to remotely manage content from any location.
- Content Management Features
- Remote content updates
- Scheduling and automation
- Operational messaging
- Visitor information
- Safety notices
- Event announcements
- Emergency communications
- Multi-user access
- The platform supports:
- Text messages
- JPEG images
- PNG graphics
- TIFF files
- Animated GIF content
- Integrated system features include:
- Temperature monitoring
- Real-time clock
- Calendar scheduling
- Automated content management
4G Connectivity and Remote Access
To ensure reliable communications, the Digital LED Sign is connected via a dedicated outdoor 4G LTE modem.
- Connectivity Features
- Industrial-grade 4G LTE modem
- Secure remote communications
- Cloud management access
- Remote monitoring and diagnostics
- M2M SIM connectivity
This allows Port of Auckland personnel to update content quickly and efficiently without requiring on-site access.

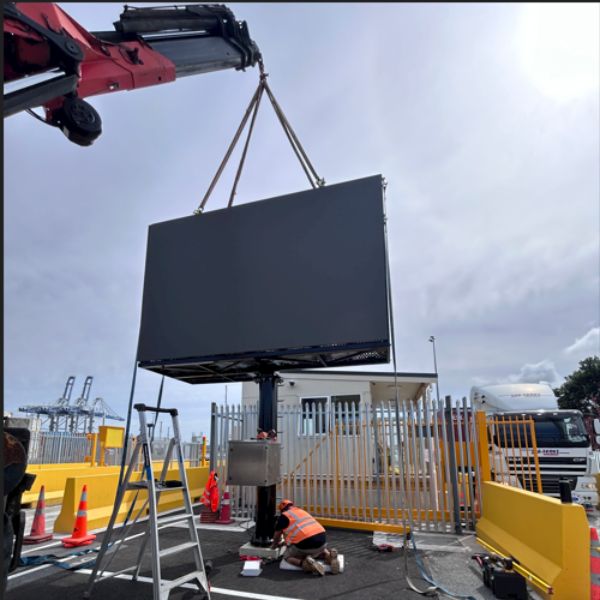

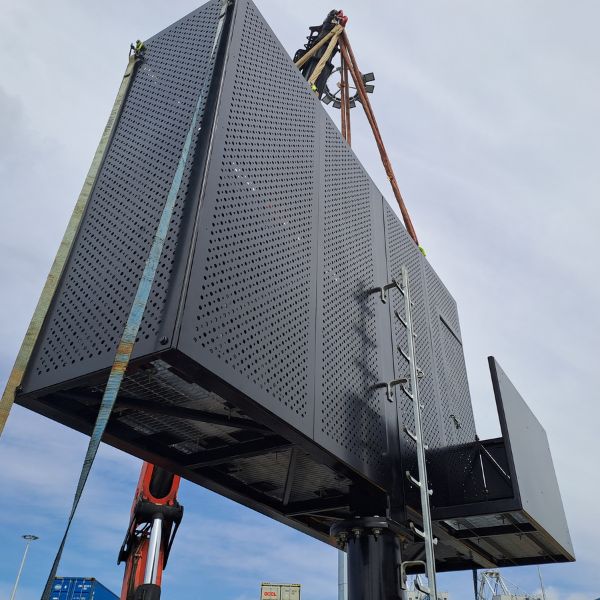

Installation Process
The completed structure and LED display were transported from WiPath’s manufacturing facility to Port of Auckland.
- Installation included:
- Site preparation
- Crane-assisted lifting
- Mounting onto the engineered bolt-cage foundation
- Mechanical securing of structure
- Connection of electrical services
- Configuration and commissioning
- Performance testing
The concrete plinth and electrical infrastructure were supplied by Port of Auckland and its appointed electrical contractor.
Following installation, the system was fully tested and commissioned before being handed over for operational use.
Benefits of Digital Signage for Port Operations
The upgraded Digital LED Sign provides significant advantages for the school community.
Why Port of Auckland Continues to Choose WiPath
This installation represents the fourth Digital LED Sign project completed by WiPath for Port of Auckland.
Our experience in delivering Commercial Digital Signage, Outdoor LED Displays, Industrial LED Signs, and Digital Communication Systems allows us to provide reliable solutions tailored to demanding operational environments.
- WiPath specialises in:
- Digital LED Signs
- Commercial Digital Signage
- Outdoor LED Displays
- Industrial Communication Displays
- LED Message Boards
- Traffic Information Signs
- Cloud-Based Digital Signage Systems
- Custom Steel Sign Structures
From design and manufacturing through to installation, commissioning, training, and ongoing support, WiPath delivers complete Digital Signage solutions throughout New Zealand.
